| Categories | Medical Equipment Making Machine |
|---|---|
| Model Number: | JZC-DSHT001 |
| Productname: | Medical Equipment Making Machine |
| Dimensions: | 2000mm x 1500mm x 1800mm |
| Supply Ability: | 10 sets per 120 days |
| Controlsystem: | PLC Touch Screen Control |
| Plc: | Omron |
| Payment Terms: | Western Union, T/T |
| Precisionlevel: | ±0.01 mm |
| Delivery Time: | 90-120 days |
| Automationlevel: | Fully Automated |
| Brand Name: | JZC |
| Specification: | in common use |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Warrantyperiod: | 12 months |
| Applicable Material: | medical consumable |
| Place of Origin: | China |
| Materialcompatibility: | Stainless Steel, Plastic, Silicone |
| Productioncapacity: | 100-500 units per hour |
| MOQ: | 1 |
| Production Capacity: | 8S/2pcs |
| Air Cylinder: | SMC |
| Application: | Manufacturing of Medical Devices and Equipment |
| Warranty: | one year |
Product Description:

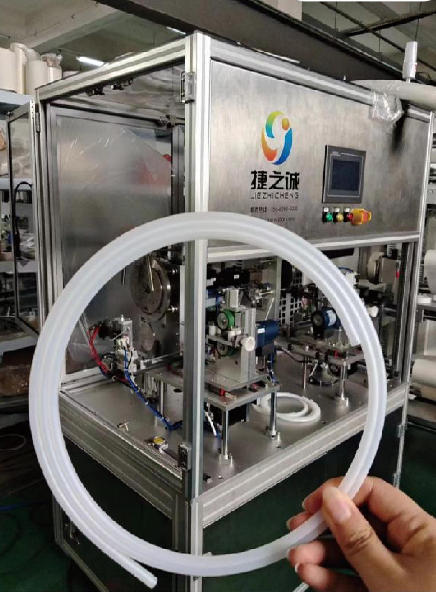

Fully Automatic Guide Wire Protective Sleeve Coiling & Welding Machine Automatic Guide Wire Protective Sleeve Welding Equipment DSHT001
Equipment Function:
This equipment is designed for fully automatic coiling and welding of guide wire protective sleeves.It can be equipped with different molds to match products of various sizes.Featuring a dual-station design, it supports automatic feeding, automatic coiling and welding, and automatic blanking upon welding completion, enabling faster and more efficient production while cutting costs.
1. Production efficiency: 2 pieces every 45 seconds.
2. Compatible with products of various size specifications.
3. Upgraded latest temperature control system with stable temperature, low material loss and high working efficiency.
Technical Parameter:
1.Dimensions: length 1.2mwidth 0.9mheight 1.8m;
2. Power supply: 220V, 50HZ;
3.Equipment power: 2.5KW;
4.Air source 0.6MPA;
5. The operating system adopts programmable controller PLC and friendly human-machine interface display;
Configuration Specification:
1. Switch control button: lzumi, Japan;
2. PLC:Huichuan;
3. Operation interface: Kunlun Tongtai;
4. Motor:Inovance;
5. Electrical control components: LS;
6. Switching power supply: MEAN WELL;
7. Bearing: NSK.
Scope of application:

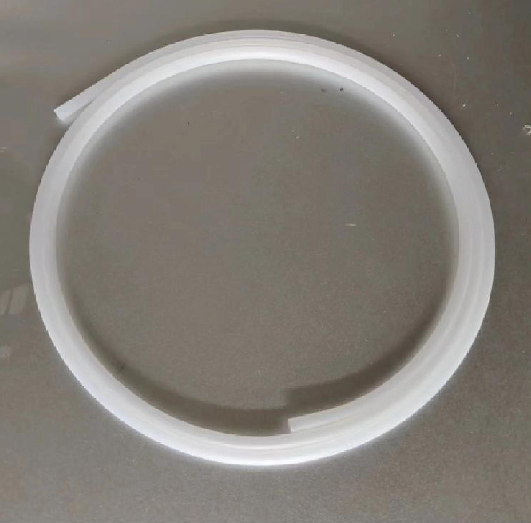

The equipment is used for automatic welding of guide wire sheath pipes. The diameter and length of the pipe can be customized as needed! The automatic buckle coil can be customized!
|
