D16 3D Welding Table with Accurately Spaced Grid Holes

D16 3D Welding Table with Accurately Spaced Grid Holes

D16 3D Welding Table with Accurately Spaced Grid Holes
D16 3D Welding Table with Accurately Spaced Grid Holes
Categories Welding Fixture Table
Model Number: D28
Table Thickness: 12mm
Price: 500-1500 USD
Flatness: ≤ 0.1 mm / 1000 mm
Perpendicularity (Top to Side Face): ≤ 0.1 mm / 200 mm
MOQ: 1 PCS
Delivery Time: 15-25 work days
Surface Treatment: Plasma Nitriding, HV550‑900
Payment Terms: L/C,D/A,T/T,D/P
Bore Diameter: Φ16 mm, H7 tolerance (Φ16.065‑16.149 mm)
Optional Material: Q355 Low‑Alloy Structural Steel / HT300 Grey Cast Iron
Working Sides: 5‑sided machining (Top + 4 vertical sides)
Certification: CE
Place of Origin: WUXI , CHINA
Packaging Details: 4000*2000*200mm
Brand Name: WUXI LEMAR
Nitriding Layer Hardness: HV550‑900
Supply Ability: 500 units/month
Grid Spacing: 50 mm × 50 mm, hole‑position tolerance ±0.05 mm
Contact Now
Company Info.
Wuxi Lemar Machinery Equipments Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

D16 3D Welding Table with Accurately Spaced Grid Holes

D16 3D Welding Table with Accurately Spaced Grid Holes
D16 3D Welding Table overview showing precision grid holes

Our D16 3D Welding Table with Accurately Spaced Grid Holes is a five-sided modular flexible welding fixture built for precision welding, assembly and inspection tasks. Engineered with accurate 50×50 mm grid hole layout and Φ16 mm H7 precision bores, this 3D welding table delivers reliable repeat positioning for small-to-medium workpieces.

Fully stress-relieved and plasma-nitrided, it resists welding spatter, wear and long-term deformation. Compatible with global standard D16 fixture accessories, it supports quick setup, multi-table splicing and robot welding station integration for mixed-batch production.

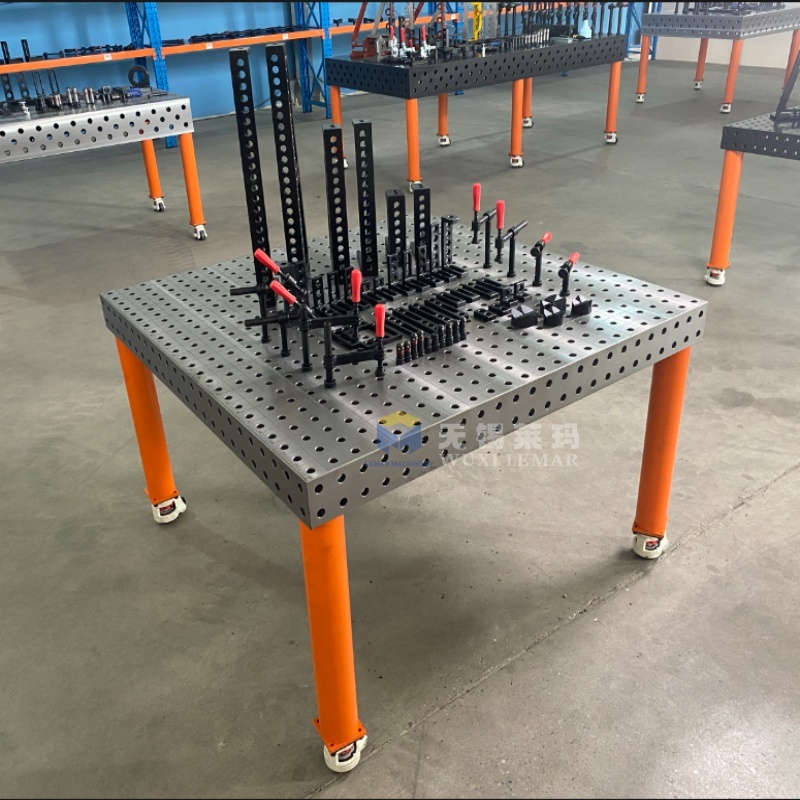

Close-up view of D16 welding table grid holes and surface D16 welding table in use with various fixtures
Core Technical Parameters
ItemSpecification
Bore DiameterΦ16 mm, H7 tolerance (Φ16.065-16.149 mm)
Grid Spacing50 mm × 50 mm, hole-position tolerance ±0.05 mm
Flatness≤ 0.1 mm / 1000 mm
Perpendicularity (Top to Side Face)≤ 0.1 mm / 200 mm
Optional MaterialQ355 Low-Alloy Structural Steel / HT300 Grey Cast Iron
Surface TreatmentPlasma Nitriding, HV550-900, anti-spatter and wear-resistant
Table Thickness12-16 mm, with bottom reinforcing ribs
Static Load CapacityTabletop: 2 tons; Complete Support Frame: 5-10 tons; Single Support Leg: 900-1000 kg
Compatible AccessoriesM12 Locking Bolts, Φ16 Locating Pins, Quick Clamps, Angle Stops, Extension Blocks and full set of D16 fixtures
Features
  • 5-Sided Precision Grid Holes (3D Core): The top surface and four vertical sides are all machined with 50×50 grid holes, allowing for side, vertical, and diagonal positioning of the workpiece, enabling three-dimensional spatial clamping instead of simply laying it flat on a table for welding.
  • Accurately Spaced Grid Holes: All parts are CNC milled in a single operation, followed by artificial aging to relieve internal stress; hole spacing is strictly 50±0.05mm, ensuring high interchangeability between holes; the fixture can be moved freely to any grid hole, ensuring high repeatability and consistency, suitable for multi-variety, small-batch production, and also applicable to robotic welding stations.
  • Materials and Processes:
    • Q355 steel: High strength, impact resistance
    • HT300 cast iron: Good vibration damping, less thermal deformation
    • Nitriding treatment: High surface hardness, easy to clean weld slag, less prone to scratches, and extended service life
Applicable Scenarios
  • Welding of small and medium-sized steel structures, frames, enclosures, and sheet metal
  • Welding assembly, fixture positioning, and robotic welding workstations
  • Prototype making, multi-variety small-batch workshops, and repair workshops

D16 Welding Table vs. D28 Welding Table: D16 Welding Table has a 50mm grid and denser holes, suitable for small and medium-sized precision welded parts; D28 Welding Table has a 100mm grid and larger holes, suitable for welding heavy and large workpieces.

Customer Reviews

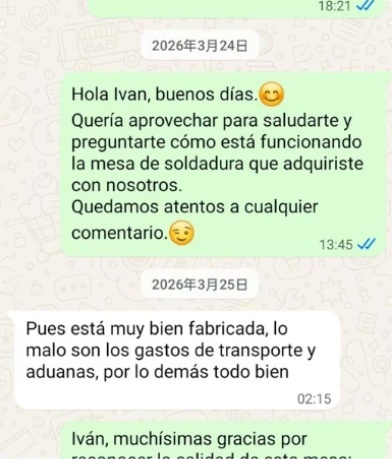

Customer review and feedback for D16 welding table Additional customer review and testimonial
After-Sales Service

Warranty: 1-year warranty for the D16 welding tabletop against manufacturing defects (flatness, hole tolerance, nitriding and structural issues). Repair or replacement applies for qualified failures under normal operation.

Technical Support: Lifetime free online technical support: installation, table leveling, fixture setup, multi-table splicing and maintenance guidance. Support via email and video call. Response within 24 working hours.

Spare Parts Supply: Full-range D16 consumable parts in stock for global shipment. All accessories are fully interchangeable with international D16 standards.

Available Documents: Measurement inspection reports are available on request for project acceptance.

Warranty Exclusions: Warranty void for damage from hammer impact, surface grinding, flame burning, overload, improper installation or unauthorized modification. Consumable accessories are not covered by warranty.

Boost your welding productivity with our D16 3D Welding Table with Accurately Spaced Grid Holes. Standard and custom sizes are available.

Contact us now to receive your tailored offer and further technical details.

Product Tags:
