High Precision Hot Melt Round Bottle Labeling Machine | 60% Glue Saving Low Maintenance

Categories Hot Melt Labeling Machine
Packaging Details: wooden box or pallet
Function: High-speed rotary labeling
Output: 250 BPM, based on 500mL ±100mL bottles
Weight: Approx. 4000kg
Price: 2000~300000USD
MOQ: 1
Material: SUS304
Supply Ability: 50 units per year
Support: Customized(Color/Configuration)
Payment Terms: L/C,T/T
Type: Labeling Machine
Delivery Time: 30 working days to 180 workings days
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Precision Hot Melt Round Bottle Labeling Machine | 60% Glue Saving Low Maintenance

High Precision Hot Melt Round Bottle Labeling Machine | 60% Glue Saving & Low Maintenance

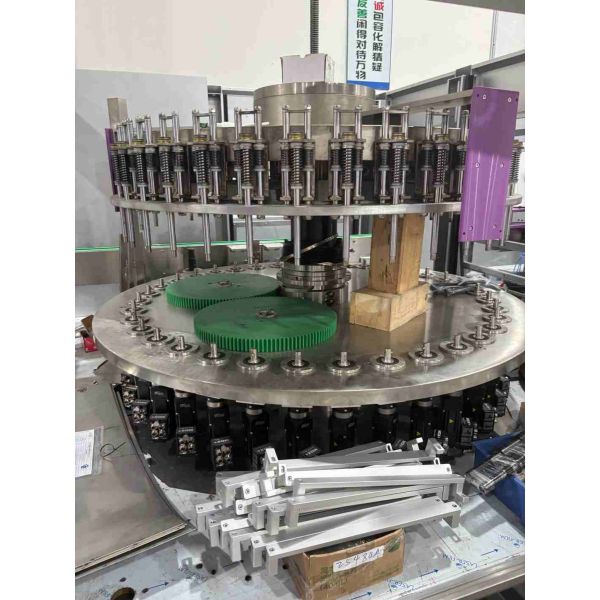

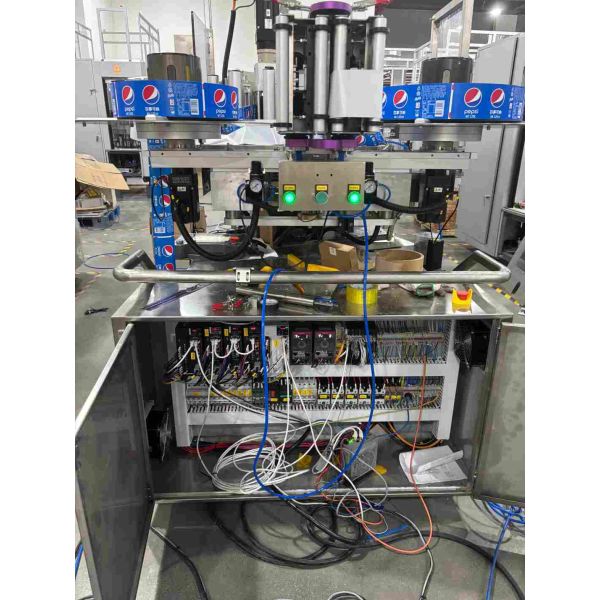

Designed for round bottle labeling in liquor, beverage, fruit juice, sauce and daily chemical industries, our automatic hot melt labeling machine is developed to help manufacturers cut costs and improve production quality. Equipped with eight high-precision servo motors and multi-servo synchronous control system, it supports quick fine-tuning of labeling head position with smooth operation and stable labeling precision. Featuring low failure rate during long-term operation, it greatly cuts downtime and manual adjustment cost. All models come with standard balancer and two separate automatic lubrication systems for main machine and labeling station, which automatically lubricate core moving parts regularly to reduce manual maintenance, slow component abrasion and extend equipment service life.

Stations9 stations
Power SupplyAC380V, 50Hz, 13KW
Production Speed12,000–18,000 BPH (subject to the dimensional accuracy of containers and labels)
Speed RegulationStepless speed control
Labeling Accuracy±1mm (subject to container specifications)
Applicable Container Diameter≤φ85mm
Paper Core Inner Diameterφ152.4 mm
Max Label Roll Diameterφ600 mm
Label HeightH30-130mm
Label Thickness0.045-0.05mm
Gluing MethodRoller gluing, glue applied to both ends of labels
Melting Temperature120–160℃
Label MaterialsOPP film, pearlescent film, paper-plastic composite film, paper labels
Air Source Requirement5 kg/cm²
Overall DimensionOverall Dimension
Machine Weight4000 kg

Outfitted with durable silent cutting blade with service life up to 26 million single-edge cuts, it delivers neat cutting without broken labels or jamming issues. The adjustable vacuum suction drum fits round containers of different sizes easily, enabling flexible production of multiple products on one single machine. Our self-developed energy-saving gluing unit is a standout advantage, reducing glue consumption by 60% versus conventional labelers to slash raw material expense. Less residual glue accumulation extends cleaning intervals and avoids frequent production halts. Optional automatic label splicing is available for high-speed unmanned production to boost overall line efficiency and output.
