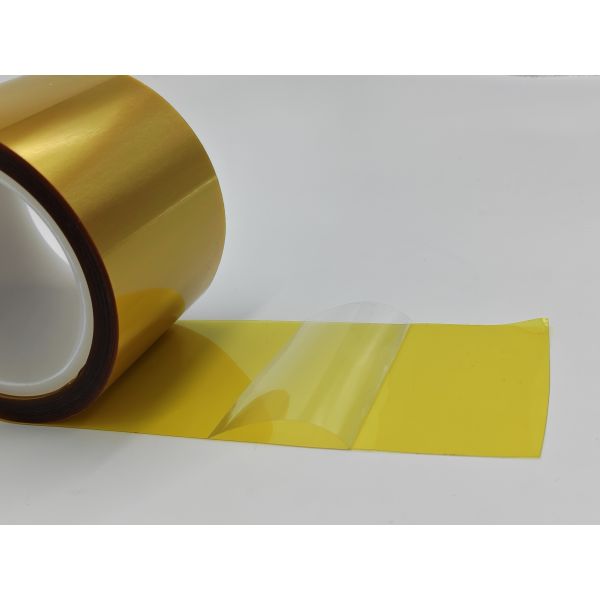

50μm High‑Temperature Resistant Double‑Sided Tape for Electrical Insulation Protection

SP-KX50 is a 50µm high-temperature double-sided gold finger tape with PI substrate and silicone adhesive. This high‑temperature double‑sided tape features excellent heat resistance and reliable adhesion. It offers good resistance to alcohol, acids and alkalis, and can be repositioned without leaving residue. With low electrolytic properties and high abrasion resistance, it delivers stable performance in demanding environments.

Constructed with PI and silicone layers, the tape provides strong electrical insulation and thermal stability. It is designed for high‑temperature applications and solder protection, ensuring safe and consistent use in electronic and electrical assembly processes.

Perfect for insulating and securing electromagnetic wires, cables, motors and electrical parts. It also works great for bundling mobile phone lithium batteries, meeting diverse high‑temperature industrial protection and assembly requirements.

• Bonding and insulation of electromagnetic wires and cables
• Motor coil insulation and high-temperature protection
• Mobile phone lithium battery cell bonding and wrapping
• High-temperature soldering and reflow process masking
• Protection of electronic components during wave soldering
• Bonding and heat dissipation in power electronic devices

Structure

Sanfeng Win New Material (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.

To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.

The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.

130±5µm, compliant with GB/T7125-2014.

Withstands 180°C for 30 minutes in an oven test.

No, it is designed for residue-free peeling and reusability.

A:800-1000g/25mm; B: 800-1000g/25mm (180° peel), per GB-T2792-2014.

95±5µm, compliant with GB/T7125-2014.

It uses PET (polyester film) with a fluoroplastic layer for excellent insulation.
