Name: Multistation High Precision Dielectric Test System for Electrical Safety PPE
Brand: MINGYANG
Price: 5000 USD

Home >

Multi-station High Precision Dielectric Test System for Electrical Safety PPE

Categories	Hipot Tester
Price:	5000usd
Type:	Testing Machine
Place of Origin:	China Mainland
Temperature range:	-10℃ ~ +50℃
Accuracy:	±0.5%~±1.0% FS
MOQ:	1
Brand Name:	MINGYANG
Capacity:	3kVA
Model Number:	MY-RT
Voltage:	Other
Protection Class:	IP55
Test vehicle diemension:	7590102cm
Test vehicle weight:	60kg
Delivery Time:	1 week
Supply Ability:	1000pcs/month
Accuracy Class:	High Accuracy
Output voltage:	1-30kV
Input voltage:	AC 220V 50Hz
Customized support:	OBM, ODM, OEM, Software Reengineering
Packaging Details:	carton
Warranty:	2 years
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Place of origin:	Hubei, China

Contact Now

Add to Cart

Company Info.

Wuhan Mingyang Technology Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

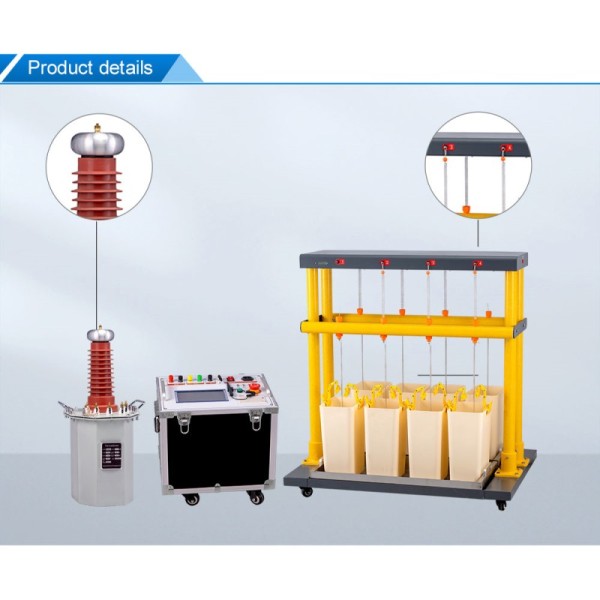

High Voltage Insulating Boots and Dielectric Safety Shoes Withstand Voltage Tester Boots

Comprehensive testing equipment for high voltage insulating boots and dielectric safety shoes with advanced withstand voltage testing capabilities.

Product Parameters

Parameter	Specification
Power supply	220V±10% 50Hz
Control box output voltage	0-250V
Control box output current	12A
Rated output voltage	50kV
Rated output capacity	5kVA
Maximum range	25mA
Leakage current range after tripping system	≥12mA
Voltage measurement error	±1% +3 digitals
Leakage current measurement error	±1% +3 digitals
Leakage current resolution	0.01mA
Digital timing	99 minutes free setting
Ambient temperature	-10℃-40℃
Humidity	≤90%RH, No condensation, no flickering of the instrument
Control box dimensions	420mm×340mm×520mm
Dimensions of the testing machine	260mm×980mm×480mm
Control box weight (kg)	22
Test machine weight (kg)	8

Features & Characteristics

Simultaneously tests 8 insulating boots or gloves while measuring leakage current for each sample
Dry test method using small steel balls inside insulating shoes eliminates traditional water pouring and drying issues
High and low voltage separation with anti-jamming wireless transmission for enhanced personal safety
Individual breaking mechanism for each test sample - faulty circuits automatically disconnect without affecting other tests
7-inch TFT touch screen with Chinese character display showing test voltage, 8-channel leakage current, timing, and parameters
Fully automatic voltage regulation with DC motor control and automatic test sequence according to national standards
Special metal grounding tray for boot testing and dedicated containers for glove testing
Customizable test transformer ratio for compatibility with existing customer equipment
Integrated overcurrent protection system

Product Images

Product Tags:

8-sample simultaneous testing High Voltage Insulating Boots Tester
