600W Laser Cutting Machine Precision Laser Cutter Gantry Type

Categories Laser Cutting Machine
Technical Class: Continuous Wave Laser
Transport Package: Wooden Pallet
Model NO.: HBS-LCT600
Specification: 1400*1700*1760mm
Laser Classification: Solid Laser
Laser Power: 1000W
Weight of Basic Machine: 1200kg
Repetitive Positioning Accuracy: 0.005mm
Trademark: HBS
Applicable Material: Metal
Laser Technology: Laser Vapor Cutting
Positioning Accuracy: 0.02mm
Laser Brands: Feibo / Raycus / Ipg
Working Area: 600*600mm
Power Consumption: 7kw/6.5kw/6kw/5.5kw
Laser Source: Fiber
CNC or Not: Yes (Japanese Linear Motor)
HS Code: 84561000
MOQ: 1 Set
Production Capacity: 100PCS/Year
Price: US $50,000-90,000
Structure Type: Gantry Type
Origin: China
Max. Cutting Speed: 30m/Min
Company Info.
HBS Tech Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

600W Laser Cutting Machine Precision Laser Cutter Gantry Type

Overview

1000W Laser Cutting Machine / Laser Cutting System is specially designed for cutting small parts in both lab testing and industrial environments. Using high-speed linear motors with marble platform gives our laser cutter the stability and acceleration needed for high-speed precision cutting. Utilizing the world top class fiber laser source, our laser cutting machine can ensure you of the best quality. Working on a variety of materials including steel, aluminum, brass, copper, titanium and alloys, our laser cutting machine provides extraordinary cutting performance and reliability.

Features
  • Fiber Laser High Efficiency and Low Operating Costs
  • Highly Stable Granite Structure
  • High-Speed Linear Motor for Faster Cutting Speed and High Precision
  • Compact Design to Reduce Facility Cost
  • Wide Range of Laser Power Selection to Reduce Your Purchasing Cost
  • Fully Enclosed System Meet CE & FDA Standards
  • Auto Stop Protection: When Cutting Head Detect Collision Between the Cutting Head and the Tilted Parts
  • Available Assist Gases for Cutting Different Materials
Specifications
Laser BrandsFeibo / Raycus / IPG
Laser SourceFiber
Laser Wavelength1064nm
Laser Power500W/800W/1000W/1500W
Max. Cutting Speed30m/min
CNC or notYes (Japanese Linear Motor)
Working Area500*500mm
Power SupplySingle-Phase 220V / 3-Phase 380V (Depending on the laser source)
Positioning Accuracy±0.02mm
Repetitive Positioning Accuracy±0.005mm
Power Consumption7kw/6.5kw/6kw/5.5kw
Cooling MethodWater Cooling
Weight of Basic Machine1200KG
Machine Dimension(L*W*H)1400*1700*1760mm
Assist GasesOxygen, Nitrogen, Compressed Air
Processable MaterialsStainless steel, Carbon steel, Mild steel, Alloy steel, Silicon steel, Spring steel, Aluminum, Aluminum alloy, Galvanized sheet metal, Aluminum-zinc coated sheet metal, pickling metal, Copper, Brass, Silver, Gold, Titanium and other metals.
After-sales Service ProvidedEngineers available to service machinery overseas

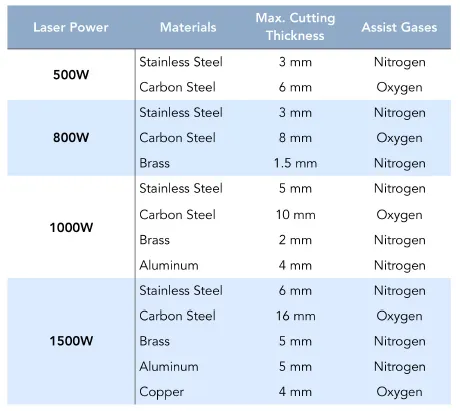

Max. material thicknesses
Samples
