| Categories | Pressure Transmitter |
|---|---|
| Model Number: | FD3051SDP |
| Accuracy: | ±0.05%FS, ±0.075%FS, 0.1%FS, 0.2(0.25)%FS, 0.5%FS (at 25℃, full scale) |
| Price: | USD 30-200/piece |
| Packaging Details: | Carton Package/Wooden Crate Package |
| Power Supply: | (12～32)VDC (24VDC recommended) |
| Supply Ability: | Production output can be flexibly adjusted according to order quantity. |
| Place of Origin: | China |
| Output Signal: | Two-wire system (4～20)mA with superimposed digital protocol (HART), RS485 protocol |
| Brand Name: | FRD |
| Range: | 0-0.1kPa ～ 3MPa |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Ambient Temperature: | (-40～80)℃ |
| Delivery Time: | 5-8 work days |
| MOQ: | 1piece |
| Process Medium: | Liquids, gases, or steam |
| Company Info. |
| Shandong Friend Control System Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
FRD SENSOR 3051SDP differential pressure transmitter is developed for all kinds of complex industrial working conditions. Equipped with high-precision sensing core and anti-corrosion stainless steel diaphragm, it can continuously and accurately collect differential pressure data under humid, corrosive and vibrating industrial environments. The device supports HART digital communication and local LCD real-time data display, which can seamlessly connect with various automatic industrial control systems. Widely applicable to differential pressure testing scenarios in environmental protection, chemical, pharmaceutical, energy and other industries, it helps enterprises monitor process pressure changes in real time, realize early fault warning, reduce equipment maintenance frequency and cut overall operation cost, and acts as a stable and reliable core measuring instrument for industrial differential pressure monitoring.
| Range | 0-0.1kPa ～ 3MPa |
|---|---|
| Accuracy | ±0.05%FS, ±0.075%FS, 0.1%FS, 0.2(0.25)%FS, 0.5%FS (at 25℃, full scale) |
| Output Signal | Two-wire system (4～20)mA with superimposed digital protocol (HART), RS485 protocol |
| Process Medium | Liquids, gases, or steam |
| Power Supply | (12～32)VDC (24VDC recommended) |
| Ambient Temperature | (-40～80)℃ |
| Stability | 0.1%URL/3 years |

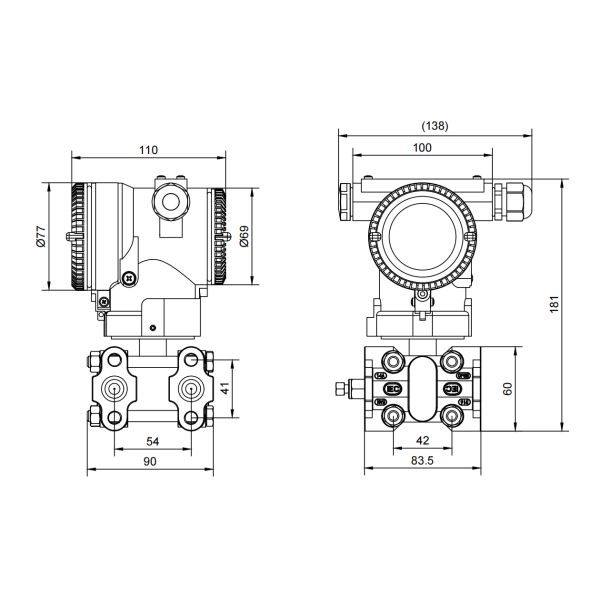

Product dimensions, specifications and parameters are for reference only. For specific details, please contact us, and we will provide you with professional answers.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: How long is the delivery time for the product?
A: We will provide a specific delivery time based on your order quantity. For orders of 1 to 30 pcs, the delivery time is approximately 2 to 7 working days.
Q: How do you control your quality ?
A: Full inspection process (Incoming Material Screening, Process Control, and Performance Verification) to ensure quality + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: We hold 6 invention patents, possess certifications for CE, ATEX, and SIL, and are a member of the HART Protocol. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide ODM/OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you
|
