NO+NC 20A 380V Electrical Magnetic AC Contactor for Industrial Control Systems

Categories 3 Pole AC Contactor
Packaging Details: Each unit be packed in one individual inner box
Auxiliary contact: 1NO+1NC
Place of Origin: Zhejiang, China
Rated Insulation Voltage: 690VAC
Rated Current: 20A, 32A, 40A, 50A, 60A, 80A, 125A
Electricity Type: AC
Payment Terms: T/T,L/C
Power Frequency: 50/60Hz
Number of Poles: 3
Model Number: SC3-09, SC3-12,SC3-18,SC3-25,SC3-32,SC3-40,SC3-50,SC3-65,SC3-80,SC3-95
MOQ: 200
Delivery Time: 10 DAYS
Brand Name: YOKG or OEM
Rated Operational Voltage: 220VAC
Certification: CE
Number of Auxiliary Contacts: 3
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NO+NC 20A 380V Electrical Magnetic AC Contactor for Industrial Control Systems

NO+NC 20A 380V Electrical Magnetic AC Contactor
Product Overview

This 3 Pole AC Contactor is designed for industrial control systems, featuring reliable magnetic operation and compliance with international safety standards.

Key Features
  • Product Name: 3 Pole AC Contactor
  • Installation Method: Screw or DIN Rail Mounting
  • Auxiliary Contact: 1NO+1NC Configuration
  • Rated Voltage: 220VAC
  • Number of Poles: 3
  • Insulation Voltage: 690VAC
  • Compliant with IEC60947-4 Standard
  • Enhanced Safety and Durability Design
Technical Specifications
General Parameters
Product TypeAC magnetic contactor, 3P+NC+NO
Power Frequency50/60Hz
Rated Insulation Voltage690VAC
Rated Voltage220VAC
Rated Operational Voltage220VAC
Rated Current20A, 32A, 40A, 50A, 60A, 80A, 125A
Installation MethodScrew or DIN Rail
Protection LevelIP20
Auxiliary Contact1NO+1NC
Performance Parameters
ParameterSC3-09SC3-12
Rated heating current (A)2020
Rated insulation voltage (V)690690
Rated impact withstand voltage (KV)66
Rated making capacity10le10le
Rated breaking capacity8le8le
Poles33
Auxiliary contact1NO+1NC1NO+1NC
Short-time withstand current(A) 10S7296
Rated working current(A) 380V AC-3912
Rated working current(A) 380V AC-43.55
Rated working current(A) 660V AC-36.68.9
Rated working current(A) 660V AC-41.52
AC-3 capacity of phase 3 squirrel-cage motor (KW) 220V2.23
AC-3 capacity of phase 3 squirrel-cage motor (KW) 380V45.5
AC-3 capacity of phase 3 squirrel-cage motor (KW) 660V5.57.5
Product Images

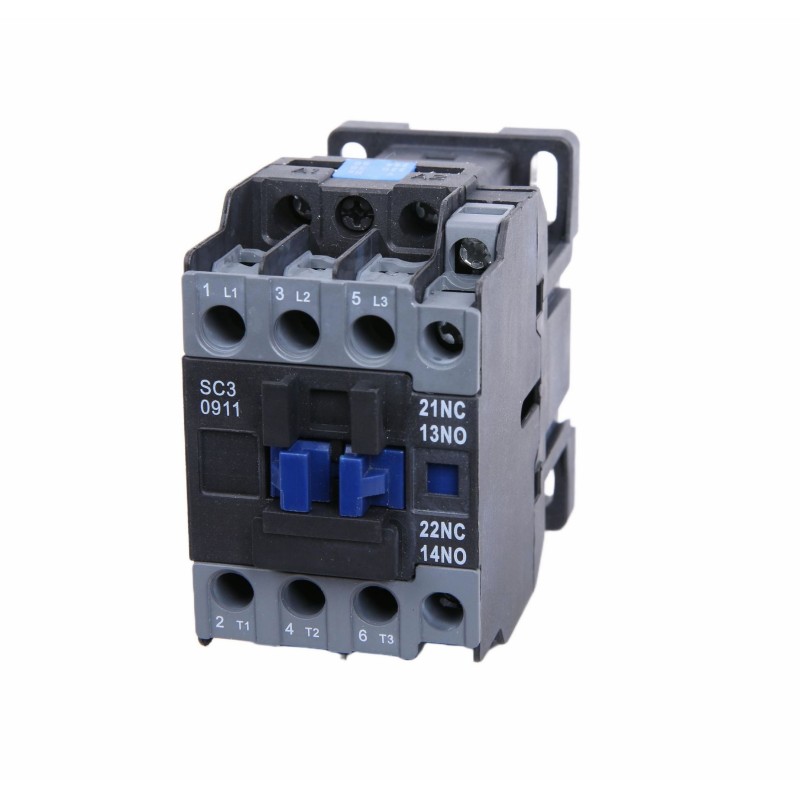

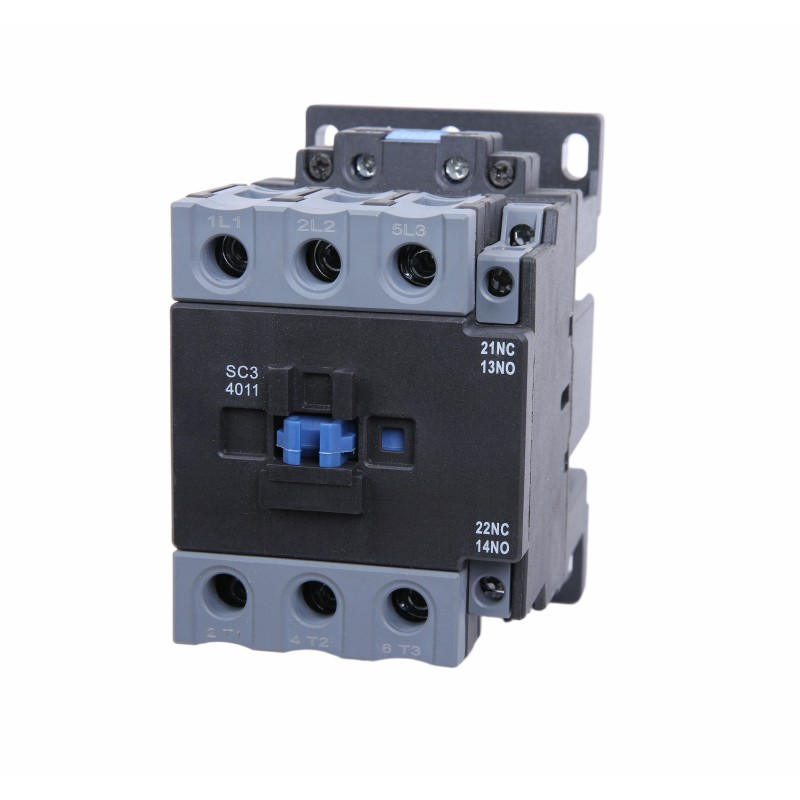

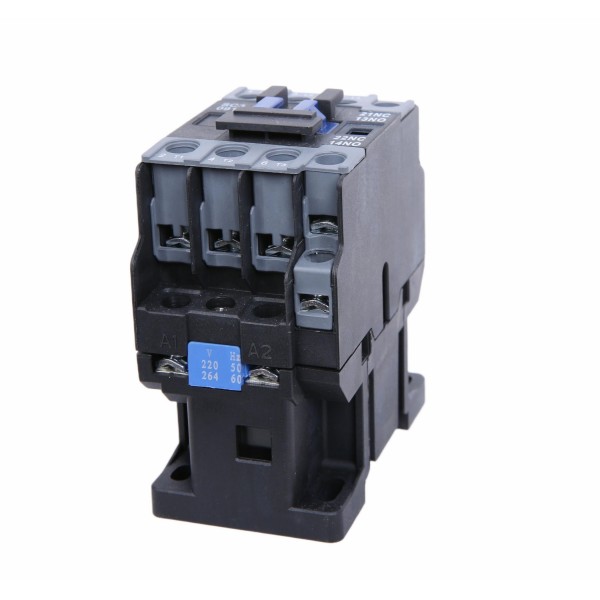

3 Pole AC Contactor front view showing electrical connections and mounting options Close-up view of AC Contactor terminals and contact configuration Side view of industrial AC Contactor showing DIN rail mounting features
Frequently Asked Questions
What brand names are available for the 3 Pole AC Contactor?
The 3 Pole AC Contactor is available under the brand names YOKG or OEM.
What are the model numbers offered for this 3 Pole AC Contactor?
The available model numbers are SC3-09, SC3-12, SC3-18, SC3-25, SC3-32, SC3-40, SC3-50, SC3-65, SC3-80, and SC3-95.
Where is the 3 Pole AC Contactor manufactured?
The product is manufactured in Zhejiang, China.
What is the minimum order quantity for the 3 Pole AC Contactor?
The minimum order quantity is 200 units.
What are the payment terms and delivery time for this product?
Payment terms accepted are T/T and L/C, with a delivery time of approximately 10 days.
