IEC 60601 Medical Bed Load Testing Machine for Static and Dynamic Body Weight Test

IEC 60601 Medical Bed Load Testing Machine
The IEC 60601 Medical Bed Load Testing Machine is designed to test the strength, stability, and durability of medical beds by simulating human body weight on the bed surface. This equipment verifies whether bed frames, lifting structures, and support components can withstand both static and repeated loading conditions.
This testing machine is primarily used for medical bed static load testing, dynamic load testing, hospital bed durability testing, and IEC 60601 related mechanical safety tests. It is suitable for medical bed manufacturers, testing laboratories, quality control departments, and product development teams.
Applicable Standards
StandardDescription
IEC 60601-1General safety requirements for medical electrical equipment
IEC 60601-2-52Particular safety requirements for medical beds
YY9706.252Chinese standard related to medical bed safety testing
The final test method should be confirmed according to the bed type, standard version, and required test clause.
Testing Principle
The medical bed is fixed on the test platform while the loading arm applies force to the bed surface through a standard pressure plate. The machine can perform:
  • Static Load Test: applies a fixed force and holds it for a set time
  • Dynamic Load Test: repeatedly applies force for a set number of cycles
  • Human Body Weight Simulation: simulates patient weight on the bed surface
Test force, loading speed, holding time, and test cycles can be set through the touch screen interface.
Key Features
  • Used for medical bed static and dynamic load testing
  • Suitable for IEC 60601-1 and IEC 60601-2-52 related tests
  • Simulates human body weight loading
  • PLC control with color touch screen
  • Servo motor drive for stable loading
  • Real-time force display by force sensor
  • Adjustable force, speed, holding time and test cycles
  • Standard 0.1 m² pressure plate
  • Mechanical clamping for medical bed fixing
  • Overload and leakage protection
  • Large platform for full-size medical bed samples
Technical Specifications
ItemSpecification
Product NameMedical Bed Dynamic and Static Load Testing Machine
Test ObjectMedical bed / hospital bed
Test TypeStatic load, dynamic load, body weight simulation
Test StationSingle station
Force Range0–4000 N
Loading Speed0–300 mm/min
Holding Time0–9999 s adjustable
Test Cycles0–999999 cycles adjustable
Force MeasurementForce sensor with real-time display
Dynamic Load Example1350 N, 10000 cycles
Pressure PlateStandard 0.1 m² pressure plate
Pressure Plate ConnectionM20 threaded connection
Control SystemPLC control
Operation InterfaceColor touch screen
Drive ModeServo motor with precision reducer
Clamping MethodMechanical clamping
Sample Size RangeUp to approx. 1200 * 2000 * 1300 mm
Power SupplyAC 220 V ±10%, 50–60 Hz
PowerApprox. 3.0 kW
Machine SizeApprox. 4000 * 1800 * 2150 mm
Machine WeightApprox. 400 kg
Main Applications
  • Medical bed strength testing
  • Hospital bed static load testing
  • Medical bed dynamic fatigue testing
  • Bed frame durability testing
  • Lifting structure load testing
  • Factory quality control
  • Product development and design verification
  • Pre-compliance testing before certification
Frequently Asked Questions
  • What is this machine used for?
    It is used to apply static and repeated load to a medical bed to check whether the bed structure is strong and durable enough.
  • What standards does it relate to?
    It is designed for IEC 60601-1, IEC 60601-2-52 and YY9706.252 related medical bed mechanical load tests.
  • What is the force range?
    The force range is 0–4000 N.
  • What is a typical dynamic load test?
    A common test condition is 1350 N for 10000 cycles, depending on the required test clause.
  • Is this machine a medical device?
    No. It is laboratory testing equipment for medical bed safety and durability testing. It is not used for patient treatment.
Summary
The IEC 60601 Medical Bed Load Testing Machine is used to test the static strength and dynamic durability of medical beds. It helps manufacturers and laboratories check whether a medical bed can withstand human body weight and repeated loading during daily healthcare use.

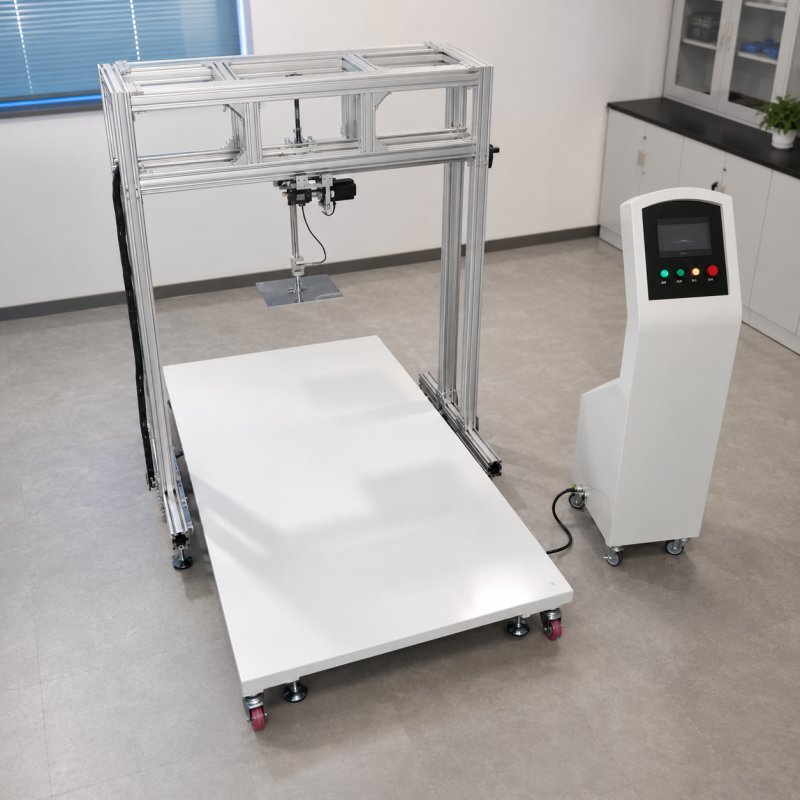

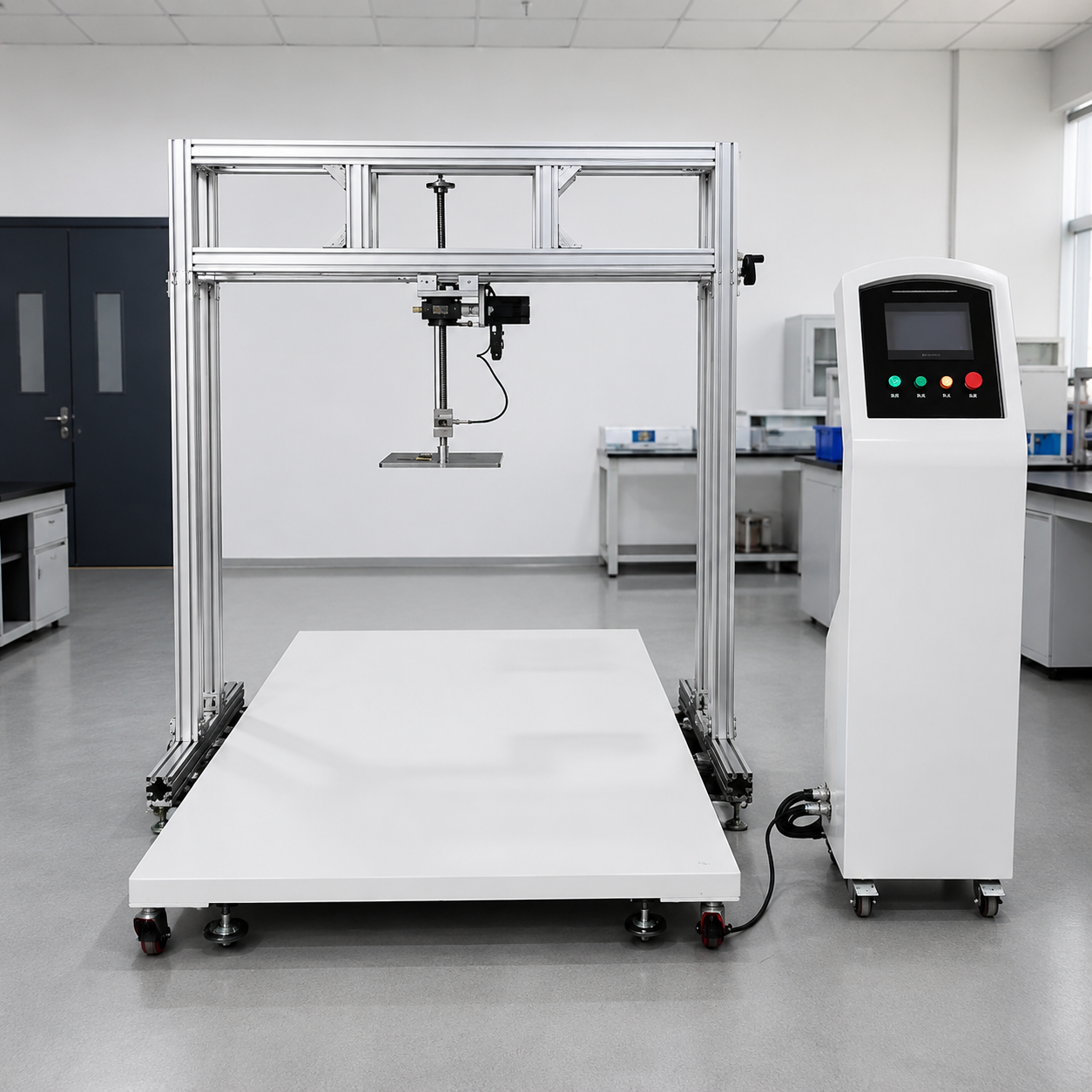

Front view of medical bed load testing machine for IEC 60601 mechanical safety testing Angled view of hospital bed load testing machine for body weight simulation
